Models & Architecture
MzeeChakula employs a sophisticated ensemble of Graph Neural Networks (GNNs) to provide accurate nutrition recommendations. This section details the architecture and theoretical underpinnings of each model used in our system.
The Ensemble System
Our production model combines the strengths of three top-performing architectures to ensure robustness and accuracy across diverse user scenarios.
| Model | Weight | Strength |
|---|---|---|
| CRGN (Compositional Reasoning Graph Network) | 40% | Best overall balance and reasoning capability. |
| HetGNN (Heterogeneous Graph Neural Network) | 35% | Handles diverse node types (Food, Nutrient, Condition) effectively. |
| GAT (Graph Attention Network) | 25% | Efficiently attends to the most relevant neighbors in the graph. |
Performance Metrics
- Inference Time: ~15ms (CPU) / ~3ms (GPU) for top-10 recommendations.
- Model Size: ~20.4 MB (optimized for deployment).
- Accuracy: High confidence in link prediction tasks (AUC > 0.90).
Detailed Model Architectures
We evaluated 9 different GNN architectures. Below is a detailed breakdown of each.

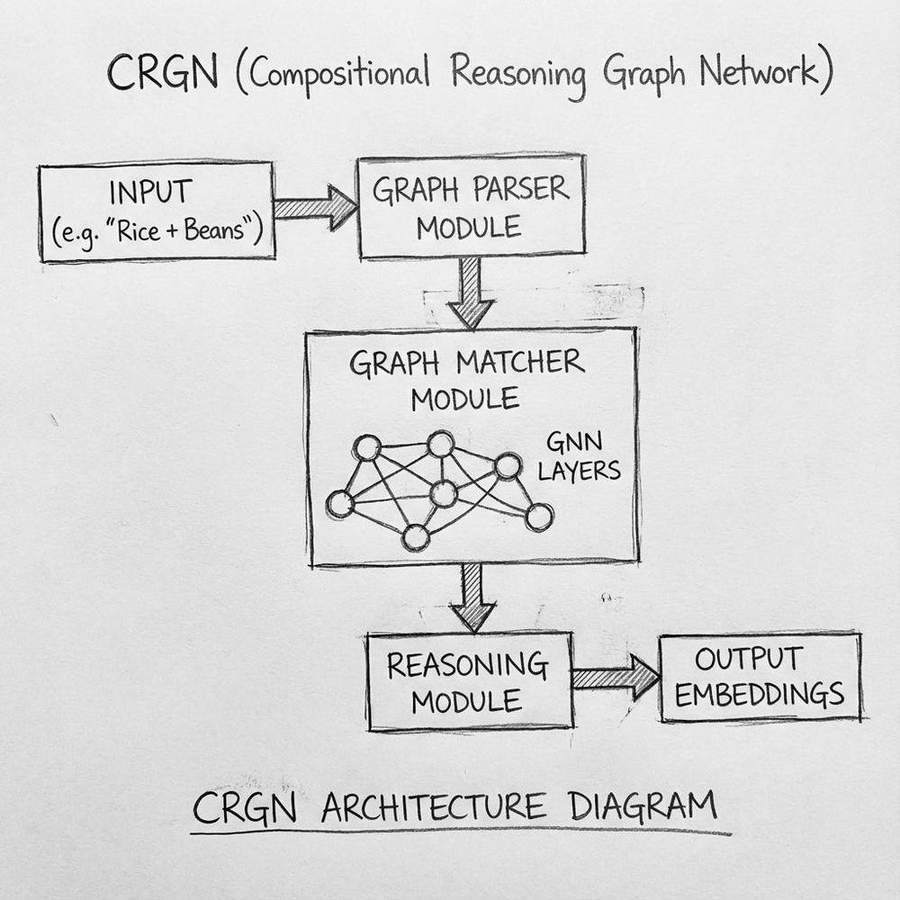

1. CRGN (Compositional Reasoning Graph Network)
Architecture: CRGN is designed to address the challenge of compositional generalization—the ability to understand and generate new combinations of known components. - Graph Parser: Decomposes the input (user profile and food items) into object-centric subgraphs. - Graph Matcher: Uses a shared GNN to compute localized node representations, implicitly inducing factor nodes between related concepts. - Reasoning Module: Learns embeddings that capture how different foods combine to meet specific nutritional goals, effectively modeling the "composition" of a meal plan.
Why we used it: Nutrition planning is inherently compositional (e.g., "Rice" + "Beans" + "Spinach"). CRGN excels at understanding these combinations.

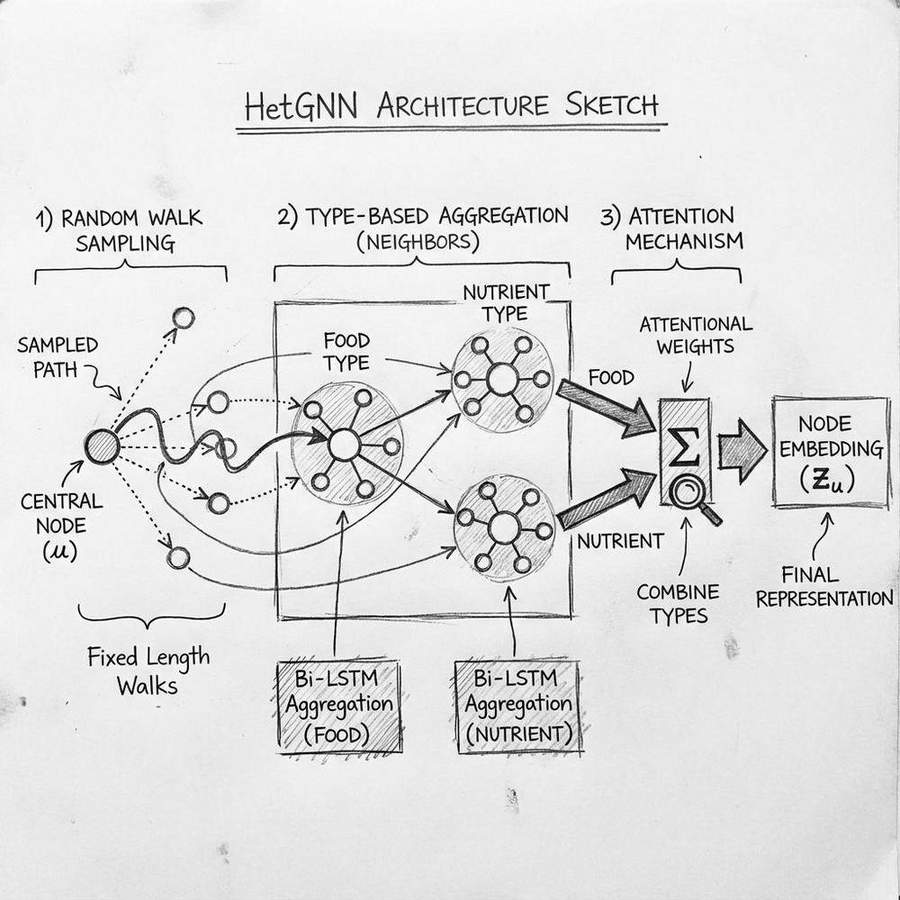

2. HetGNN (Heterogeneous Graph Neural Network)
Architecture: HetGNN is specifically built for heterogeneous graphs where nodes and edges have different types (e.g., Food, Nutrient, Condition). - Random Walk Sampling: Samples a fixed number of strongly correlated heterogeneous neighbors for each node to handle size variations. - Type-based Aggregation: Aggregates content embeddings from neighbors of the same type using specific neural network modules (NN-1, NN-2). - Attention Mechanism: Combines aggregated representations from different neighbor types using attention weights to form the final node embedding.
Why we used it: Our knowledge graph is highly heterogeneous. HetGNN allows us to treat "Vitamin A" (Nutrient) differently from "Hypertension" (Condition) during message passing.

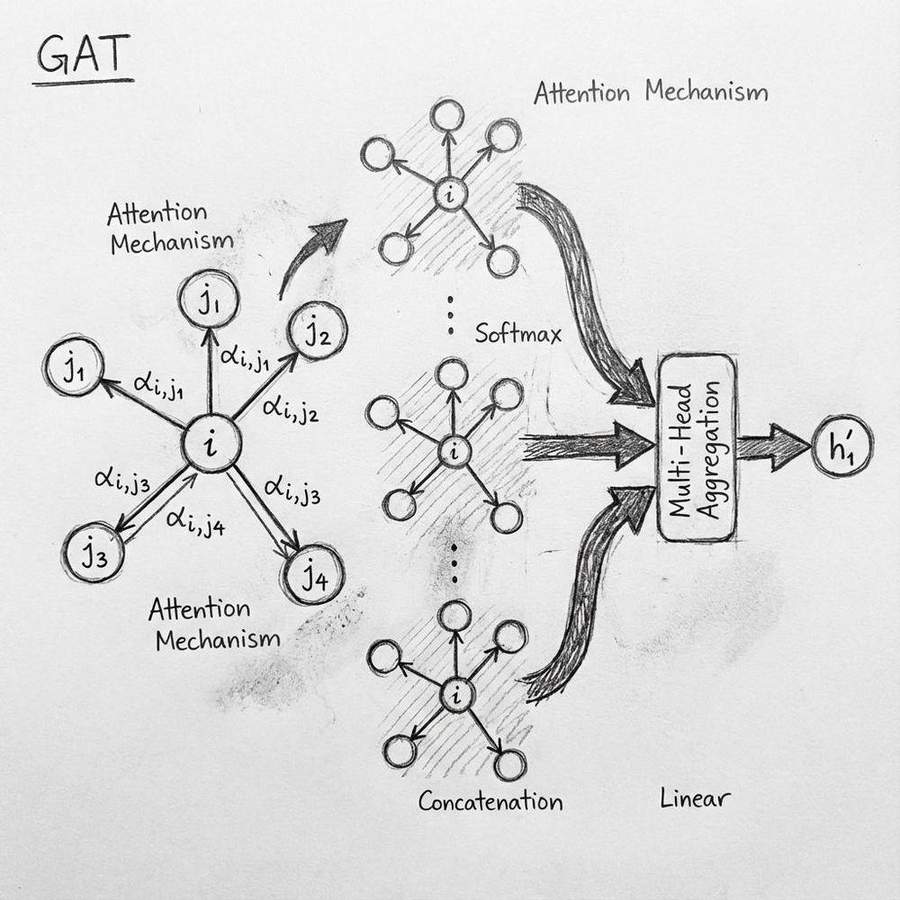

3. GAT (Graph Attention Network)
Architecture: GAT introduces an attention mechanism to standard GNNs. - Attention Coefficients: Computes the importance of node $j$ to node $i$ ($e_{ij}$) using a shared attention mechanism $a(Wh_i, Wh_j)$. - Multi-Head Attention: Runs multiple attention mechanisms in parallel to capture different aspects of relationships (e.g., one head focuses on flavor compatibility, another on nutritional value). - Weighted Aggregation: Updates node features as a weighted sum of neighbors, where weights are the learned attention coefficients.
Why we used it: Not all connections are equally important. For a diabetic user, the link between "Soda" and "Sugar" should have a much higher weight than "Soda" and "Water content".
4. R-GCN (Relational Graph Convolutional Network)
Architecture:
R-GCN extends GCNs to multi-relational graphs by using relation-specific weight matrices.
- Message Passing: For each relation type $r$ (e.g., CONTAINS, AVOIDS), a specific weight matrix $W_r$ is used to transform the neighbor's features.
- Regularization: Uses basis decomposition or block-diagonal decomposition to reduce the number of parameters and prevent overfitting on rare relations.
- Self-Loops: Includes relation-specific self-loops to ensure node identity is preserved.
Why we used it: It explicitly models the different types of edges in our graph, ensuring that the CAUSES relationship is mathematically distinct from PREVENTS.
5. Graph-RAG (Retrieval Augmented Generation)
Architecture: Graph-RAG combines graph retrieval with Large Language Models (LLMs). - Subgraph Retrieval: Instead of fetching flat text chunks, it retrieves relevant subgraphs (e.g., a patient's condition node and all connected recommended foods). - Context Enrichment: The retrieved subgraph is linearized or embedded and provided as context to an LLM. - Reasoning: The LLM uses the structural context to generate natural language explanations for recommendations.
Why we used it: To provide explainable AI. It allows the system to tell the user why a food is recommended (e.g., "Because you have hypertension, and this food is low in sodium").
6. KGNN (Knowledge Graph Neural Network)
Architecture: KGNN integrates a GNN encoder with a knowledge-aware decoder. - GNN Encoder: Aggregates information from the local neighborhood to learn entity embeddings. - Knowledge-Aware Decoder: Uses a scoring function (like TransE or TransH) to predict the plausibility of a triple $(h, r, t)$. - Receptive Field: Can be extended to multiple hops to capture high-order structural information.
Why we used it: It is highly effective for link prediction, which is the core task of recommending a new food (link) to a user.
7. G-GPT (Graph GPT)
Architecture: Adapts the Transformer decoder-only architecture (like GPT-3) for graph data. - Graph Linearization: Converts the graph structure into a sequence of tokens (nodes and edges) that can be processed by a Transformer. - Masked Attention: Uses masked self-attention to predict the next node or edge in a sequence, effectively "generating" a meal plan step-by-step. - Positional Encodings: Uses graph-specific positional encodings to retain structural information in the sequence.
Why we used it: To explore generative capabilities, such as creating entire weekly meal plans from scratch rather than just recommending single items.
8. GRN (Graph Recurrent Network)
Architecture: Combines GNNs with Recurrent Neural Networks (RNNs) to handle dynamic/temporal graphs. - Spatial-Temporal Processing: A GNN processes the spatial structure at each time step, while an RNN (like LSTM or GRU) updates the hidden state over time. - Graph Filter: Replaces standard linear transformations in RNNs with graph convolution operations.
Why we used it: To model seasonality. Food availability and prices in Uganda change with the seasons (Dry vs. Wet), and GRN captures these temporal dynamics.
9. TCN (Temporal Convolutional Network)
Architecture: A specialized neural network for sequence modeling using 1D dilated causal convolutions. - Causal Convolutions: Ensures that predictions at time $t$ only depend on history (no future leakage). - Dilated Convolutions: Allows the network to have a very large receptive field (history) with few layers, capturing long-range temporal dependencies. - Residual Blocks: Uses residual connections to allow for deeper networks and stable training.
Why we used it: An alternative to GRN for modeling time-series data like price fluctuations and seasonal trends, offering parallelizable training.

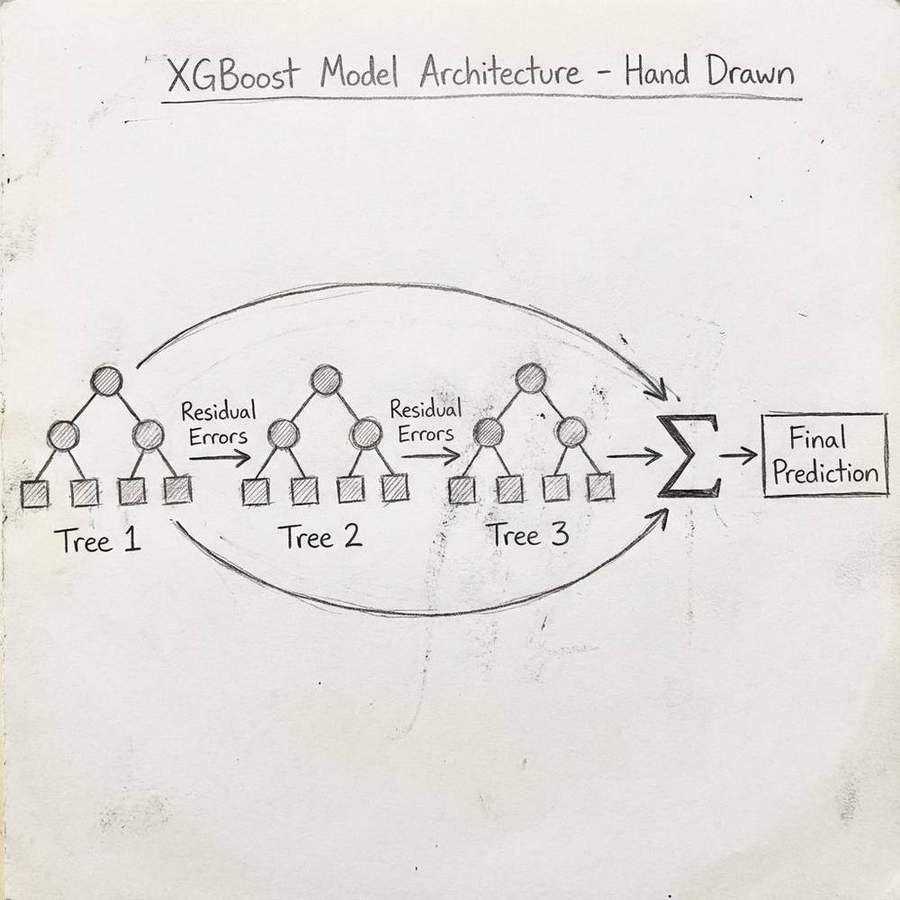

XGBoost Calorie Predictor
In addition to the GNN ensemble, we use XGBoost (Extreme Gradient Boosting) for predicting daily caloric needs based on user demographics.
Architecture: XGBoost is a gradient boosting framework that builds an ensemble of decision trees sequentially. - Input Features: Age, weight, height, activity level, gender, and health conditions - Boosting Process: Each tree corrects the errors of the previous trees - Regularization: L1 and L2 regularization to prevent overfitting - Objective Function: Minimizes mean squared error (MSE) for calorie prediction
Why we used it: - Highly accurate for tabular data with demographic features - Fast inference time (~1ms per prediction) - Interpretable feature importance - Robust to missing values and outliers
Performance: - Mean Absolute Error (MAE): ~50 kcal - R² Score: 0.94 - Training time: <5 minutes on CPU
Training Pipeline
All models were trained using the following standardized pipeline:
- Data Splitting: 80% Train, 10% Validation, 10% Test (stratified by user/condition).
- Loss Function: Binary Cross-Entropy (for link prediction) or MSE (for score prediction).
- Optimizer: AdamW with weight decay for regularization.
- Framework: PyTorch Geometric (PyG) and Deep Graph Library (DGL).
